OEM/OEE: PASOE Agent and Session details are not visible the PAS instance is created with security credentials: -m option

OpenEdge Explorer/Management does not have access to PAS Agent or Session details when the PASOE instance is created with security credentials: -m <uid:pwd>]

Oct 22, 2021
Knowledge

Title

URL Name

PASOE-agent-and-session-details-are-not-visible-in-OEM-when-the-PASOE-instance-is-created-with-m-option

Article Number

000205774

Environment

Product: Progress Application Server for OpenEdge Version: 11.7.2 and later, 12.x OS: All supported platforms Other: OEE, OEM, PASOE

Question/Problem Description

Agent or Session details cannot be accessed from the OEE/OEM Browser when a PAS instance is created with security credentials: -m option in pasman/tcman
OpenEdge Management oemanager webapp cannot access PASOE Agent and Session details when the PAS instance manager default username/password is changed

Steps to Reproduce

1. create a new PASOE instance proenv> pasman create -f -Z dev -v -p 11710 -P 11711 -s 11712 -m admin:admin2 newpasoe 2. open OpenEdge Explorer in a webrowser Example URL: http://localhost:9090 3. Go to newpasoe resource 4. Click on the ROOT link - All Agent and Session details links are not active

Clarifying Information

Error Message

Defect Number

Enhancement Number

Cause

This is expected behavior when using -m parameter with pasman/tcman:

-m <uid:pwd>] use these credentials for container security

The new instance will use a non default login and password for oemanager access.
This -m option only affects the created PAS instance and does not alter the default username/password (tomcat/tomcat) used by OpenEdge Management manager webapps when the instance is registered.

Resolution

Changing the default username/password when securing the manager webapps is part of our recommended practice:

Learn About Security and Auditing: Security in OpenEdge - Secure the Tomcat Manager and OpenEdge Manager web applications
https://docs.progress.com/bundle/openedge-security-and-auditing/page/Secure-the-Tomcat-Manager-and-OpenEdge-Manager-web-applications.html

When changing the default credentials to secure PAS instance, both the “OpenEdge Manager” and “Tomcat Manager” login and password fields be updated.

This is because the tcman/pasman -m option, alters the Tomcat container’s default username and password, which affects both of these manager webapps.

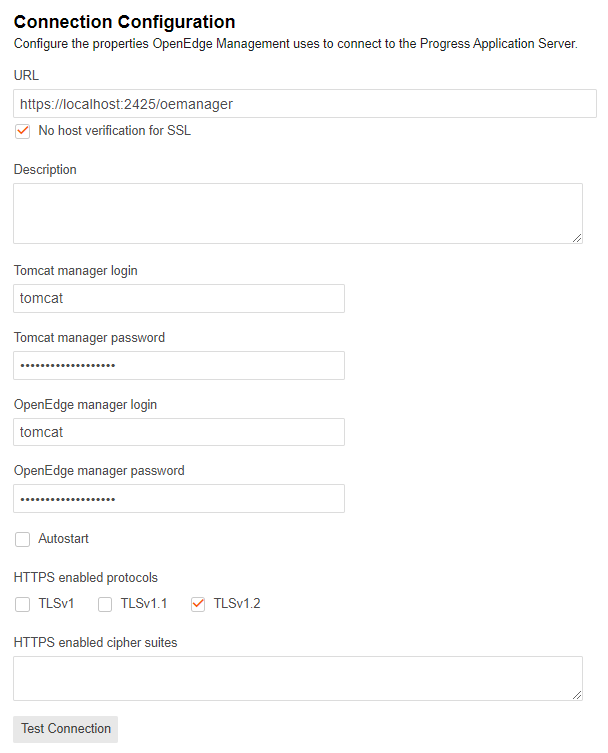

Update the OpenEdge manager login and password in OpenEdge Explorer/ OpenEdge Management:

1. In the Resources page, select the new pasoe instance
2. Go to Configuration page.

Change OpenEdge manager login ( admin, in this example)
Change OpenEdge manager password ( admin2, in this example)
Click Save button at the top
Click "Test Connection" button at the bottom:

"Status: Test connection passed successfully"

The OpenEdge Manager user (oemanager) is not the same user as the user credentials used for OpenEdge Management to access the OEE or OEM Console. The following article provides further clarification:

Where to set up the OpenEdge Manager user for PASOE

Workaround

Notes

Progress Article:

pasman create -m does not update password in pasmgr.properties

Keyword Phrase

Last Modified Date

10/22/2021 1:56 PM
